P4 V-Shaped Dual-Sided Outdoor LED Screen — ILSM Sungkai

Sungkai · Government

Specifications

Project Overview

A P4 V-shaped dual-sided outdoor LED screen installed at ILSM Sungkai, Perak, featuring two 5.76m × 2.88m display faces arranged in a V-configuration for traffic visibility from both directions.

Location	Sungkai, Perak, Malaysia
Industry / Application	Government
Screen Type	V-Shaped Dual-Sided Outdoor LED Display
Screen Dimensions	5.76m × 2.88m per face 2 faces · 33.18 m² total
Pixel Pitch	P4
Resolution	1,440 × 720 per face
Brightness	6,500 nits (cd/m²)
LED Technology	SMD
Cabinet Type	Mixed cabinet configuration using 640 × 640mm full-size cabinets and half-height cabinets
Processor / Controller	Colorlight Control System
Installation Type	V-Shaped outdoor metal structure
Completion Date	2023-12-31
Warranty	1 Year

Services Provided

Supply
Installation
System Configuration
Testing and Commissioning
User Training
Maintenance Support

requirement

Project Requirement

The customer required a large-format outdoor LED display capable of delivering clear visual content to traffic approaching from both directions. A V-shaped dual-sided display configuration was selected to improve visibility for vehicles travelling in both directions.

The installation site at ILSM Sungkai required an outdoor LED display suitable for government and public content, with sufficient brightness for daylight visibility in an outdoor environment.

solution

Our Solution

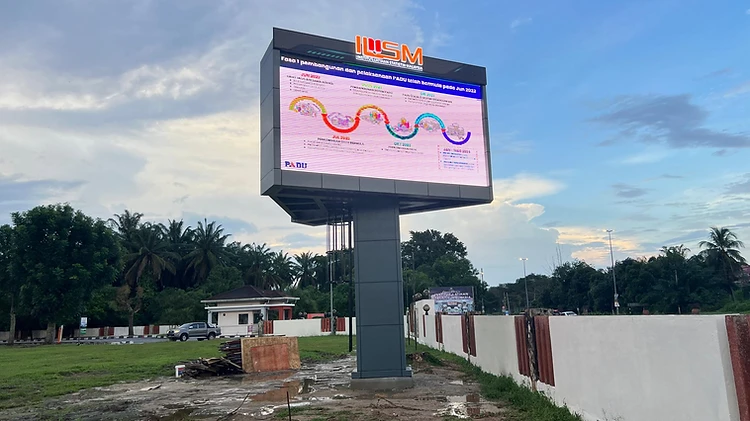

LEDSCREEN.ASIA supplied and installed a P4 V-shaped dual-sided outdoor LED display at ILSM (Institut Latihan Statistik Malaysia) Sungkai, Perak.

The display consists of two LED faces arranged in a V-shaped configuration, each measuring 5.76m × 2.88m. Each face has a resolution of 1,440 × 720 pixels and a display area of approximately 16.59 m², giving a total display area of approximately 33.18 m² across both faces.

The system uses SMD LED technology with a brightness of 6,500 nits, a Colorlight control system, and a mixed cabinet configuration using 640 × 640mm full-size cabinets and half-height cabinets.

The V-shaped outdoor metal structure allows the two display faces to point in different directions for improved traffic visibility.

installation

Installation

Installation Details

The installation included the V-shaped outdoor metal structure, mounting of the dual-sided LED display system, system configuration, testing and commissioning.

The completed display consists of:

2 LED display faces in a V-shaped configuration
5.76m × 2.88m per face
1,440 × 720 pixels per face
1,036,800 pixels per face
2,073,600 total pixels across both faces
16.59 m² display area per face
33.18 m² total display area

User training and maintenance support were also included as part of the project scope.

result

Completed Result

The completed V-shaped dual-sided outdoor LED display supports advertising, event content and public visual communication. The two display faces are positioned to improve visibility for traffic travelling in both directions.

The display provides a high-brightness outdoor digital platform for government and public content at ILSM Sungkai.
