P2 Indoor LED Screen — SUK Perak Dewan Banquet

SUK Perak Dewan Banquet · Government

Specifications

Project Overview

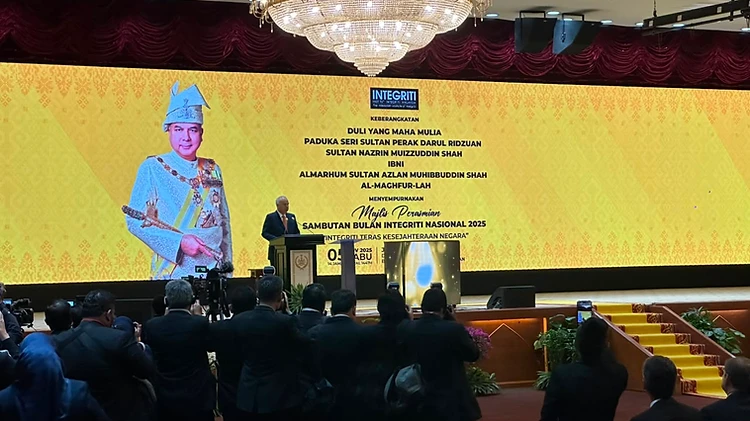

A 21.12m × 3.84m P2 indoor LED display installed at SUK Perak Dewan Banquet, providing a high-resolution large-format display system for government ceremonies, presentations and events with flexible full-screen and split-screen operation.

Location	SUK Perak Dewan Banquet, Perak, Malaysia
Industry / Application	Government
Screen Type	Indoor LED Display
Screen Dimensions	21.12m × 3.84m (81.10 m²)
Pixel Pitch	P2
Resolution	10,560 × 1,920 pixels
LED Technology	SMD
Cabinet Type	640 × 640 mm front-service LED cabinet
Module Size	320 × 160 mm
Installation Type	Wall-mounted LED display with supporting structure and front-service access
Completion Date	2025-10-31
Warranty	1 Year

Services Provided

Supply
Installation
Configuration
Testing
Training
Maintenance

requirement

Project Requirement

SUK Perak Dewan Banquet required a large-format indoor LED display capable of delivering clear visual presentation across the banquet hall while supporting flexible content layouts for different government functions and events. An important operational requirement was the ability to manage both full-screen and split-screen content easily for presentations, ceremonies and multi-source visual displays.

solution

Our Solution

LEDSCREEN.ASIA supplied and installed a 21.12m × 3.84m P2 SMD indoor LED display using 640 × 640 mm front-service cabinets and 320 × 160 mm LED modules.

With a calculated native resolution of 10,560 × 1,920 pixels, the system provides approximately 20.28 million pixels across an 81.10 m² display area.

The display system was configured to support different presentation layouts, including full-screen and split-screen operation, allowing the venue to adapt the LED display to different event requirements.

installation

Installation

Installation Details

The LED display was installed using a dedicated supporting structure with wall-mounted positioning and front-service access. The installation scope included LED cabinet alignment, module installation, power and signal connection, system configuration, display testing and operational training.

The 21.12m × 3.84m screen configuration consists of 33 cabinets horizontally and 6 cabinets vertically, for a total of 198 LED cabinets.

result

Completed Result

The completed P2 indoor LED display provides SUK Perak Dewan Banquet with a large, high-resolution visual platform for official ceremonies, government presentations and other events held at the venue.

The system can be used for full-screen presentation as well as split-screen content layouts, providing greater flexibility for different event formats and visual requirements.
