Dual Circular LED Displays — BatterCatch, AEON Mall Tebrau City

Johor Bahru · Corporate

Specifications

Project Overview

Two custom P2.5 circular indoor LED displays installed at BatterCatch, AEON Mall Tebrau City, Johor Bahru, featuring suspended curved structures designed for premium restaurant branding and interior visual presentation.

Location	Johor Bahru, Johor, Malaysia
Industry / Application	Corporate
Screen Type	Dual Circular LED Display
Screen Dimensions	Large Ring: 6.40m × 0.16m Small Ring: 3.20m × 0.16m
Pixel Pitch	P2.5
Brightness	1000 nits (cd/m²)
LED Technology	SMD Curved LED
Cabinet Type	Front Service
Module Size	320 × 160mm
Processor / Controller	Colorlight
Installation Type	Ceiling-suspended circular LED display installation with custom curved metal supporting structure, aluminium covers and front-service maintenance access.
Completion Date	2026-09-19
Warranty	1 Year

Services Provided

Supply
Installation
Configuration
Testing
Training
Maintenance

requirement

Project Requirement

BatterCatch required a distinctive indoor digital display installation to enhance its restaurant interior and strengthen its visual brand identity.

Instead of relying exclusively on conventional rectangular displays, the project called for two custom circular LED displays of different sizes.

The goal was to integrate digital branding into the restaurant's interior design, creating a more premium, modern and visually engaging dining environment.

solution

Our Solution

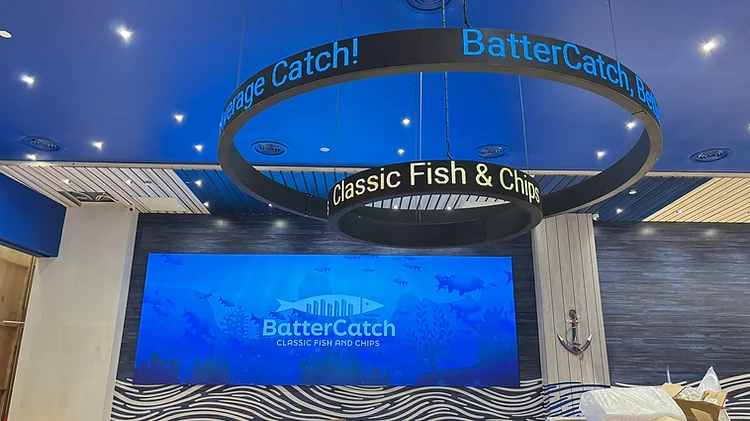

Two custom circular P2.5 indoor LED displays were supplied and installed at BatterCatch, AEON Mall Tebrau City. The installation consists of one large circular LED display and one smaller circular LED display. Both displays use SMD curved LED technology, Colorlight processing and custom curved metal supporting structures with aluminium covers.

The suspended ring design provides an architectural digital display feature within the restaurant. The project scope included supply, installation, configuration, testing, training and maintenance.

Display 1 — Large Circular LED Display

Unfolded LED Display Dimensions: 6400mm × 160mm
Pixel Pitch: P2.5
Unfolded Pixel Resolution: 2560 × 64 pixels
Total Pixels: 163,840
Module Size: 320 × 160mm
Module Quantity: 20
LED Display Area: 1.024m²

Display 2 — Small Circular LED Display

Unfolded LED Display Dimensions: 3200mm × 160mm
Pixel Pitch: P2.5
Unfolded Pixel Resolution: 1280 × 64 pixels
Total Pixels: 81,920
Module Size: 320 × 160mm
Module Quantity: 10
LED Display Area: 0.512m²

Combined Specifications

Number of Circular Displays: 2
Total Modules: 30
Combined Total Pixels: 245,760
Combined LED Display Area: 1.536m²

Technical Note: The dimensions above represent the supplied unfolded LED display lengths and heights, not ring diameters. The resolutions represent the unfolded LED display pixel dimensions. Actual content mapping and playback configuration depend on the installed system.

result

Completed Result

The completed dual circular LED display installation provides BatterCatch with distinctive digital branding displays integrated into the restaurant's interior.

The combination of two different ring sizes creates a layered visual feature, complementing the rectangular LED screen installed at the same restaurant.

Together, the display systems are designed to strengthen the restaurant's visual identity and contribute to a more premium dining atmosphere.

The same restaurant also features a separate P2.5 rectangular indoor LED screen installation, which is documented as an independent project.
